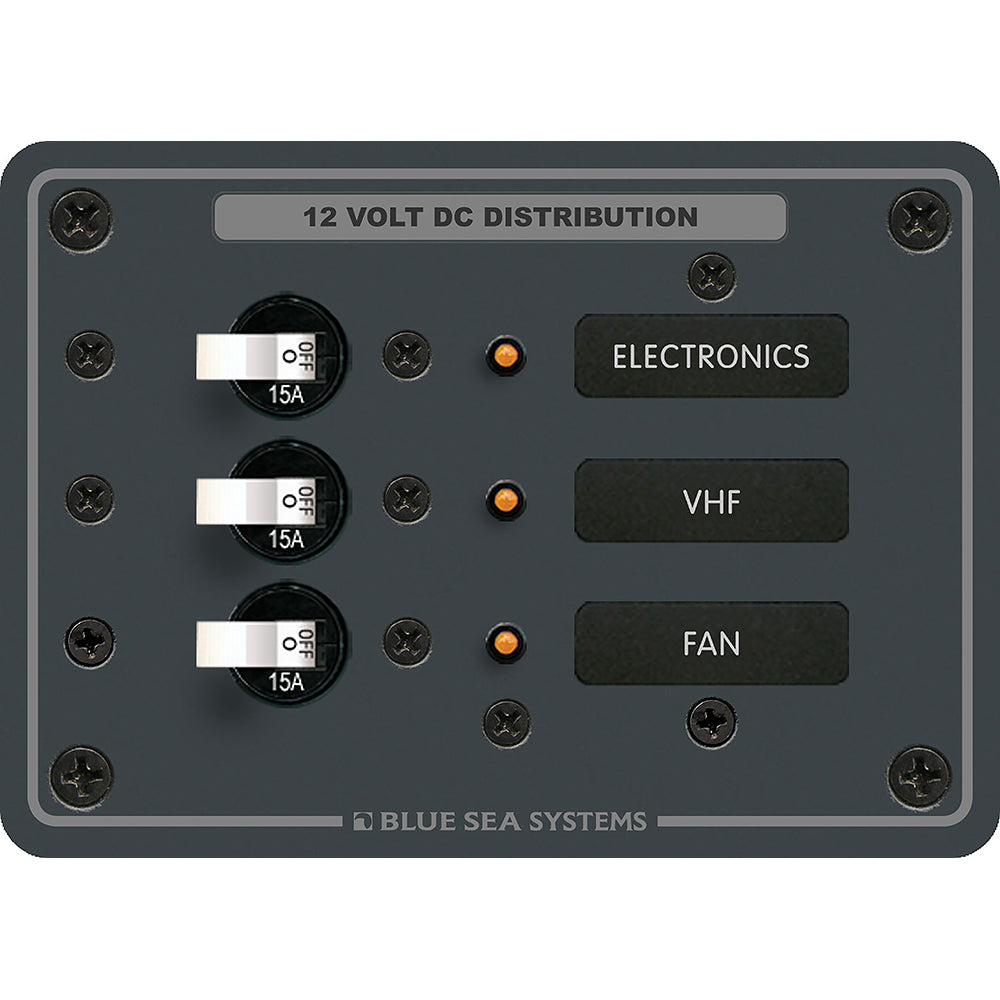

Blue Sea 8025 DC 3 Position Breaker Panel - White Switches [8025]
Blue Sea 8025 DC 3 Position Breaker Panel - White Switches [8025] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 8025 DC 3 Position Breaker Panel - White Switches [8025]
Blue Sea 8025 DC 3 Position Breaker Panel - White Switches [8025] is backordered and will ship as soon as it is back in stock.
Description
Description
8025 DC 3 Position Breaker Panel - White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 3
- Nominal Voltage: 12v / 24v DC
- Maximum Amperage: 100A
- Height: 3.75"
- Width: 5.25"
Included:
- (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 3
- Voltage: 12/24v
- Box Dimensions: 5"H x 7"W x 9"L WT: 1.2 lbs
- UPC: 632085080259
Owner's Manual (pdf)
