Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309]
Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Positi...
Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309] is backordered and will ship as soon as it is back in stock.
Description
Description

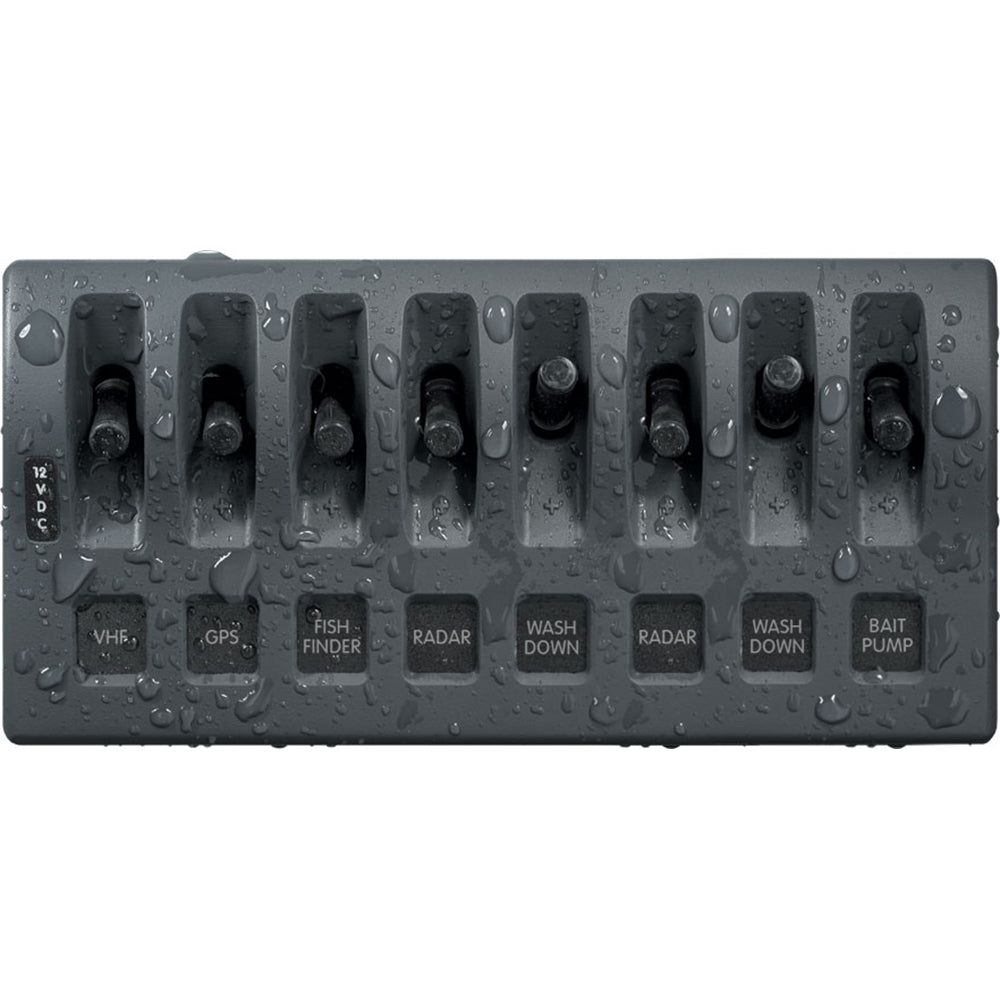

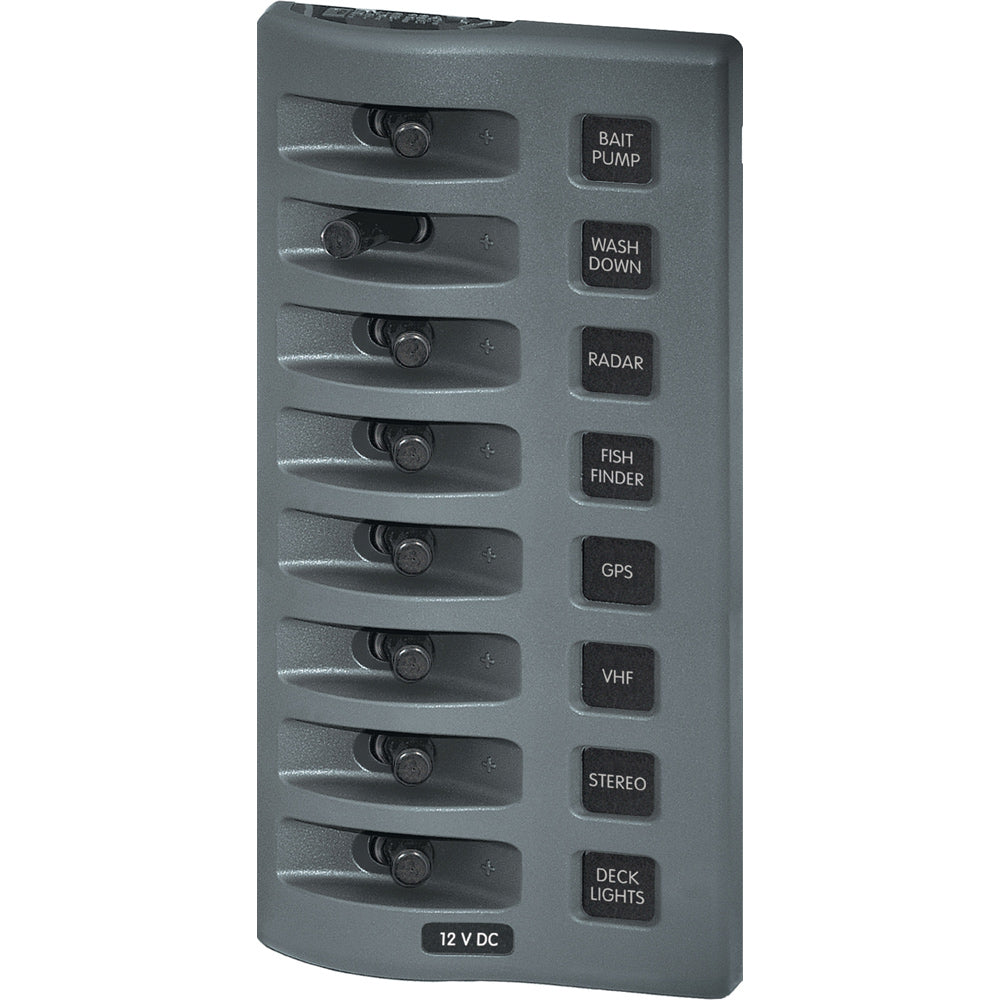

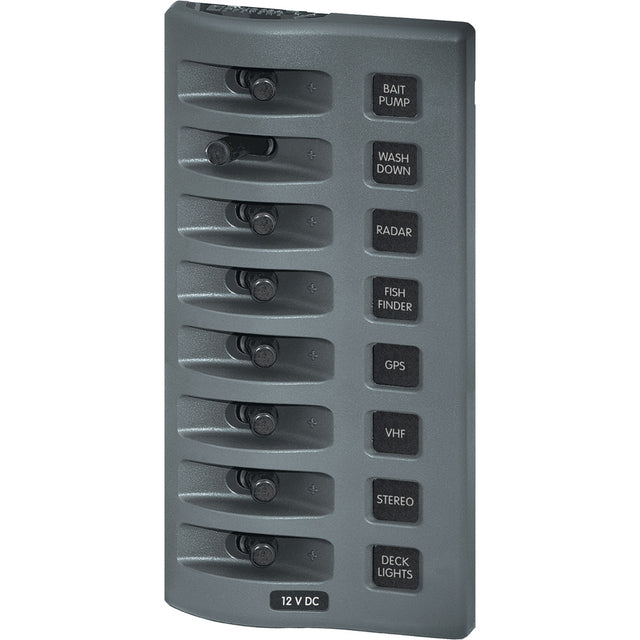

WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 8
- Waterproof: Waterproof
- Voltage: 12/24v
- Box Dimensions: 4"H x 6"W x 10"L WT: 1.2 lbs
- UPC: 632085043094
Owner's Manual (pdf)
