Blue Sea 6010200 Battery Switch Dual Circuit - Black [6010200]

Name: Blue Sea 6010200 Battery Switch Dual Circuit - Black [6010200]
Brand: Blue Sea Systems
SKU: IM-49218
Price: 55.99 USD
Availability: InStock

$55.99 $90.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

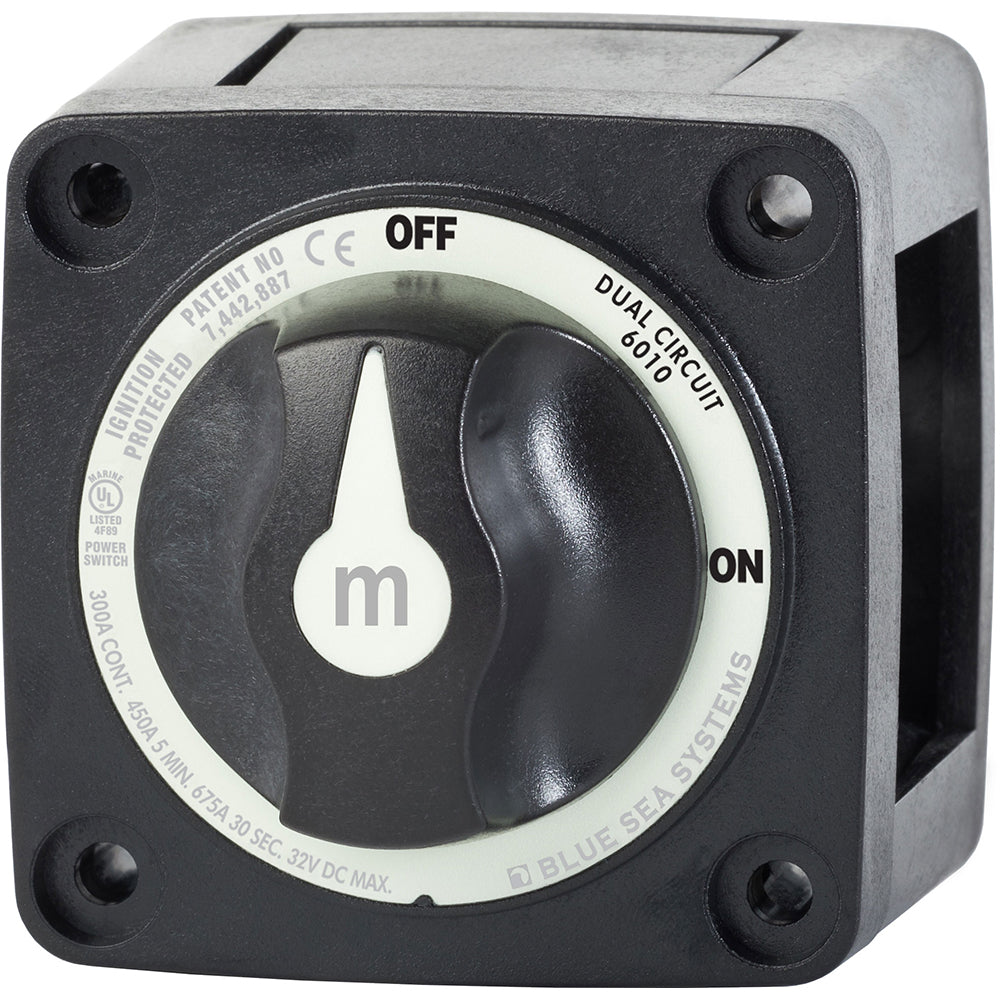

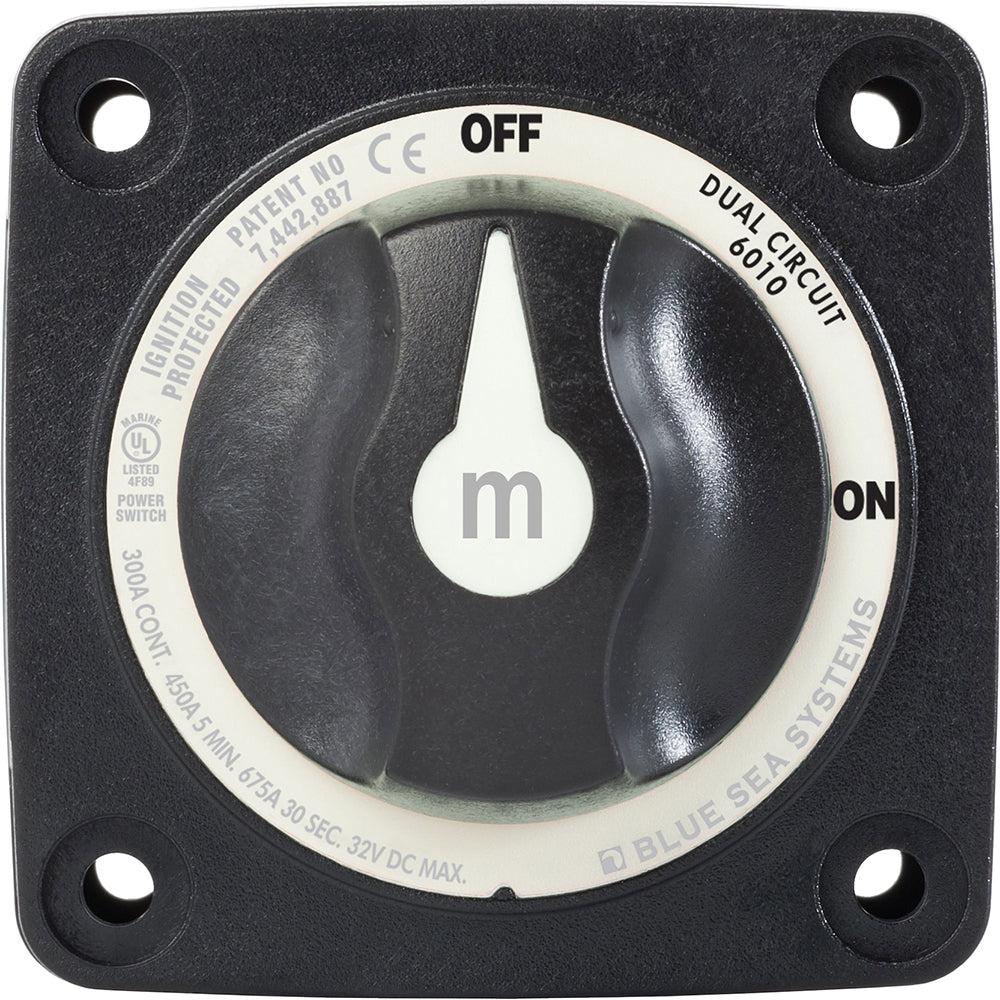

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

AFD: No
Continuous Amperage: 300a
Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
UPC: 632085601027

Owner's Manual (pdf)
