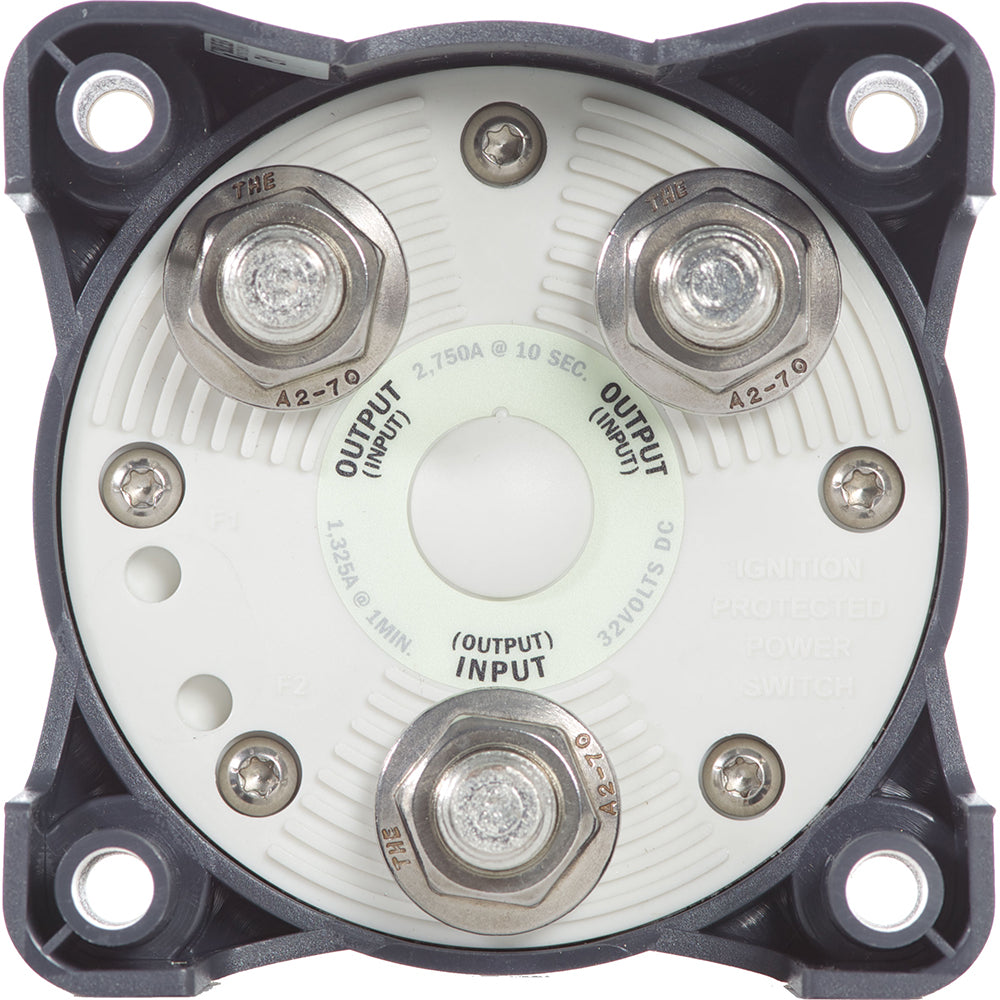

Blue Sea 3000 HD-Series Battery Switch Single Circuit ON/OFF [3000]

Name: Blue Sea 3000 HD-Series Battery Switch Single Circuit ON/OFF [3000]
Brand: Blue Sea Systems
SKU: IM-20231
Price: 80.99 USD
Availability: InStock

$80.99 $131.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

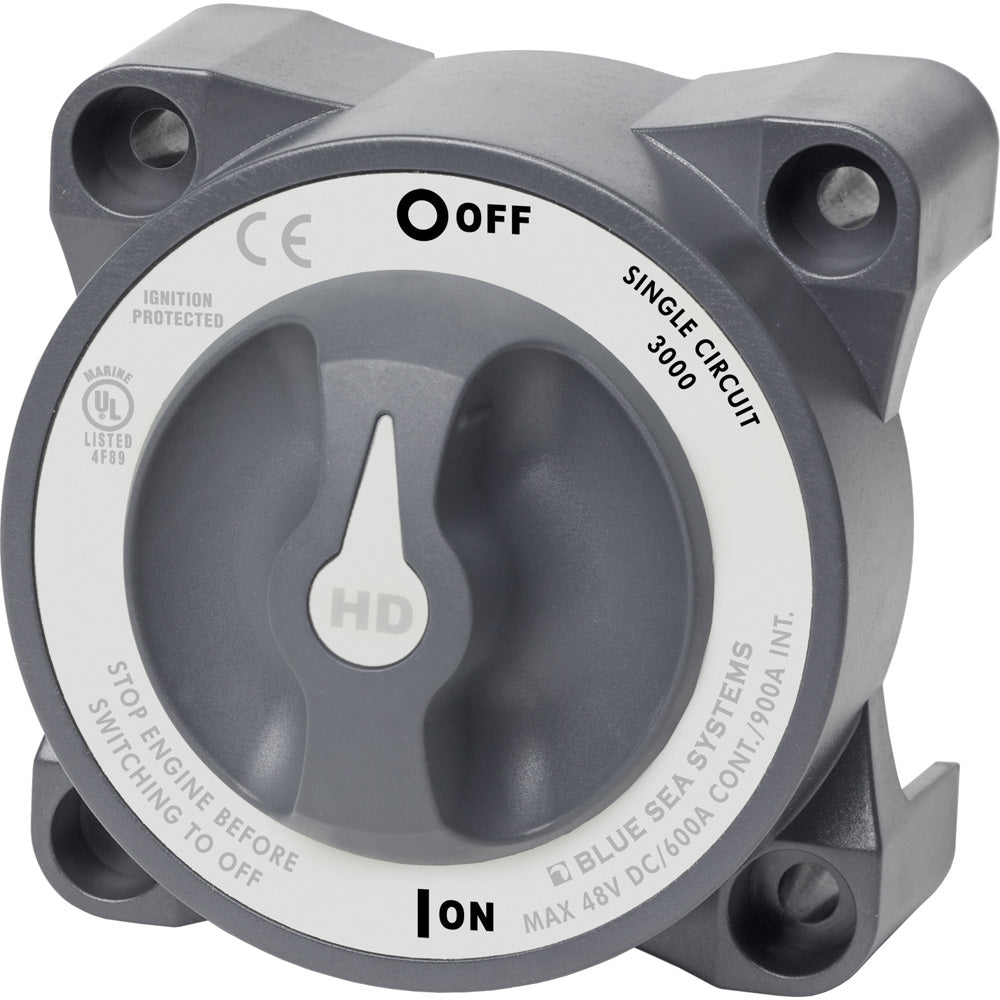

HD-Series Battery Switch Single Circuit ON/OFF

Features:

600 Ampere Continuous Rating
Accepts two 4/0 battery cables per terminal
Ignition protected - safe for installation aboard gasoline-powered boats
.870" (22.01mm) stud length to accept multiple cable terminals
1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
Meets American Boat and Yacht Council (ABYC) requirements for battery switches
Tactile textures indicate knob position by feel only

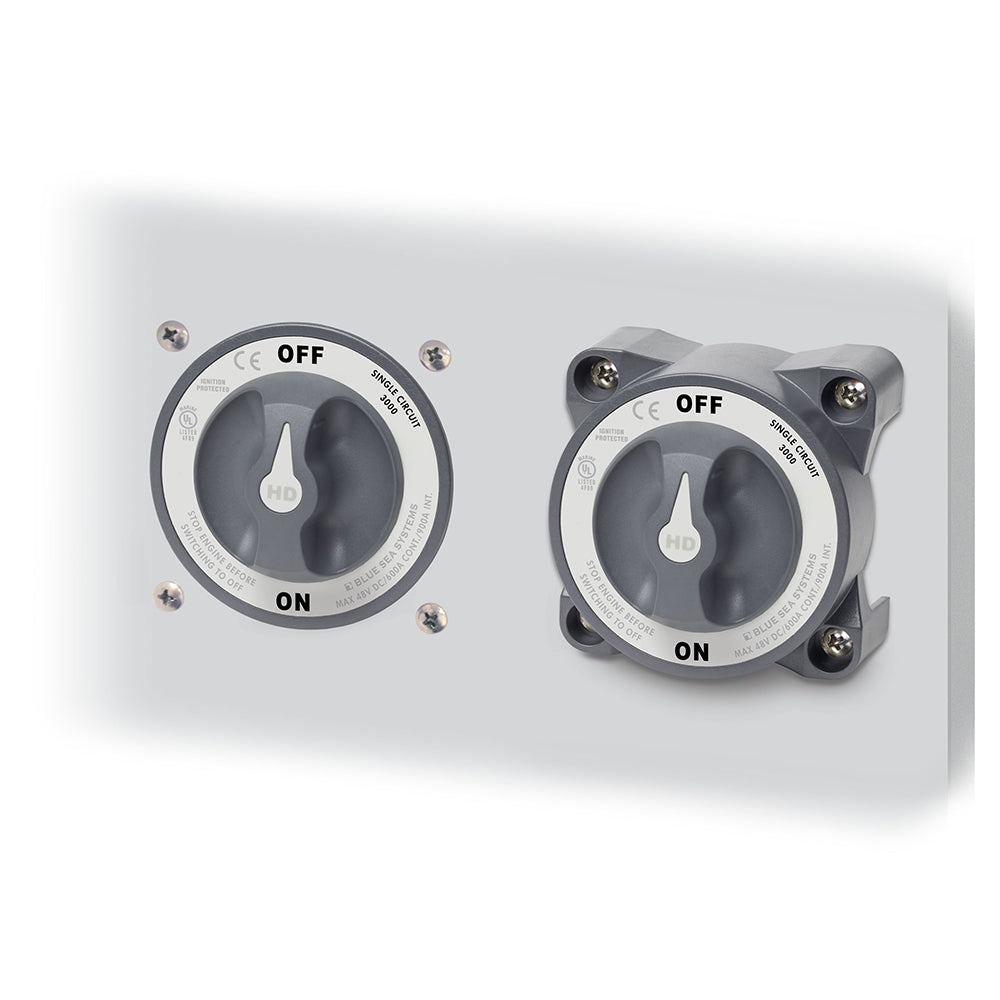

Case design allows surface or rear panel mounting
Fits all Perko and Guest low amperage battery switch hole patterns

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Positions: 2
AFD: No
Continuous Amperage: 900a
Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
UPC: 632085030001

Owner's Manual (pdf)
