Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601]
Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601]
Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch [2601] is backordered and will ship as soon as it is back in stock.
Description
Description

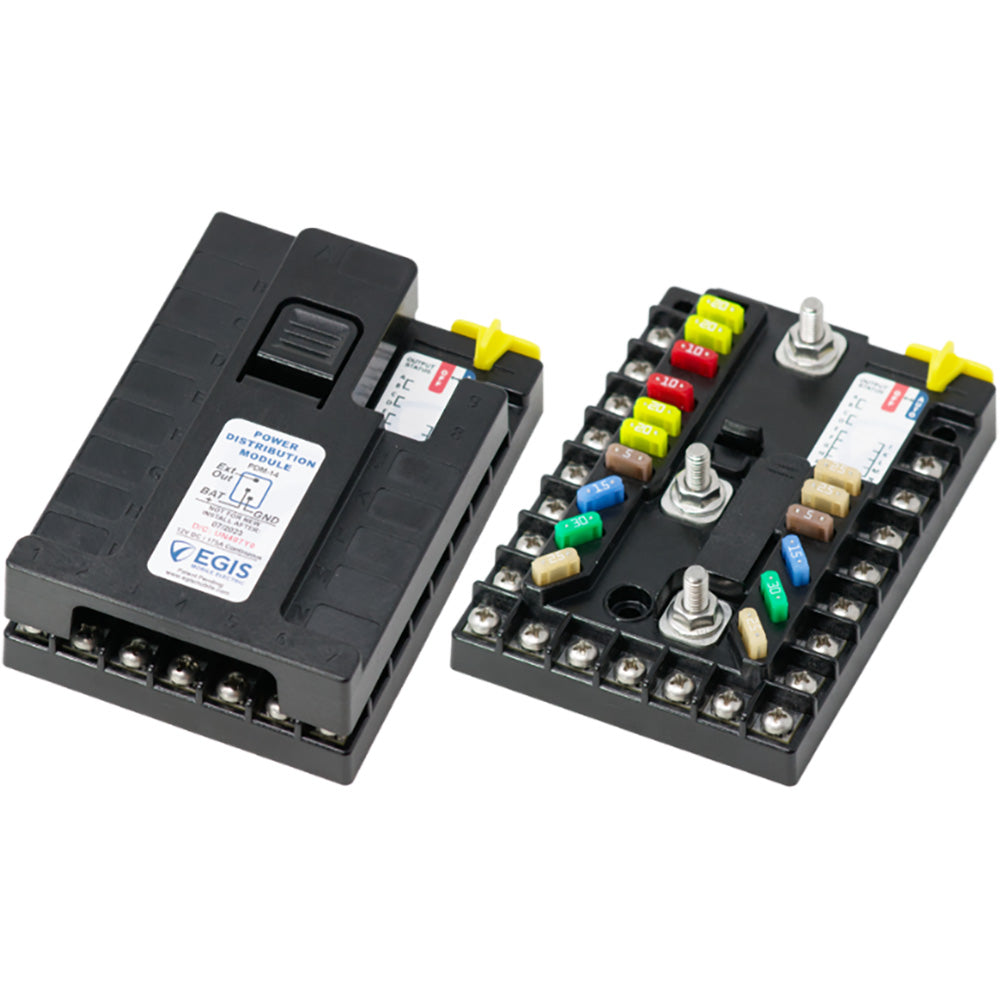

PDM 14 Circuit + Ground 175A 12V with Kill Switch
Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit: 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay 0-10 hrs
- Optional low voltage protection 11-12.2 volts
- Offload current draw 1.3 mA
Quick Guide (pdf)
