Shakespeare  |  SKU: IM-10640

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain [5230]

Sale price $591.99 Regular price $659.99


Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

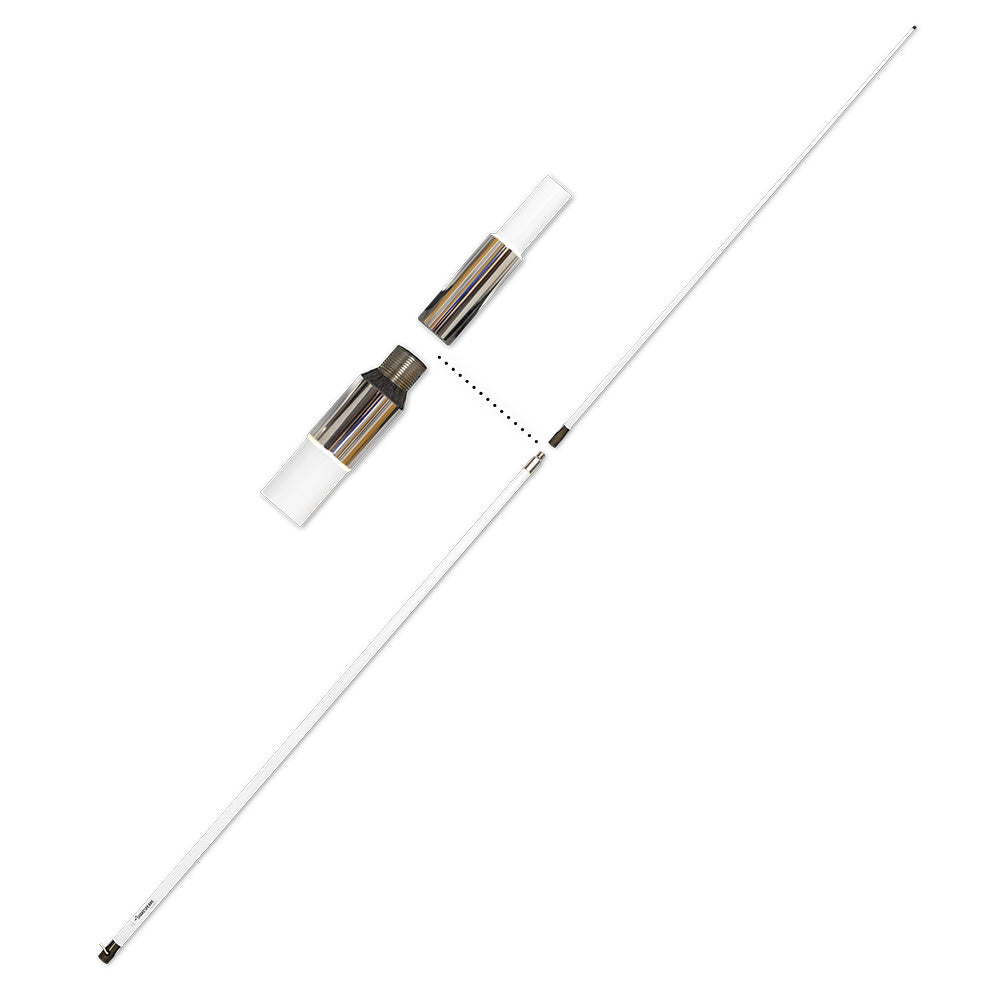

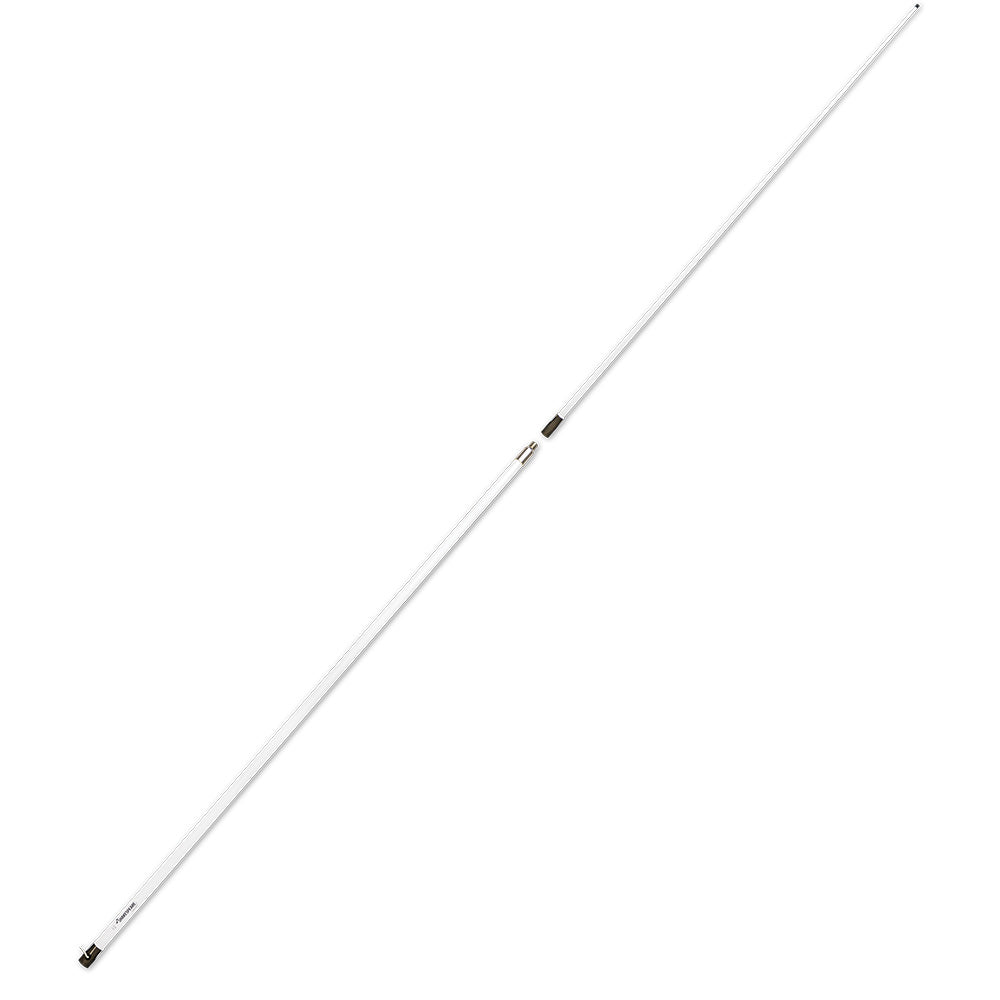

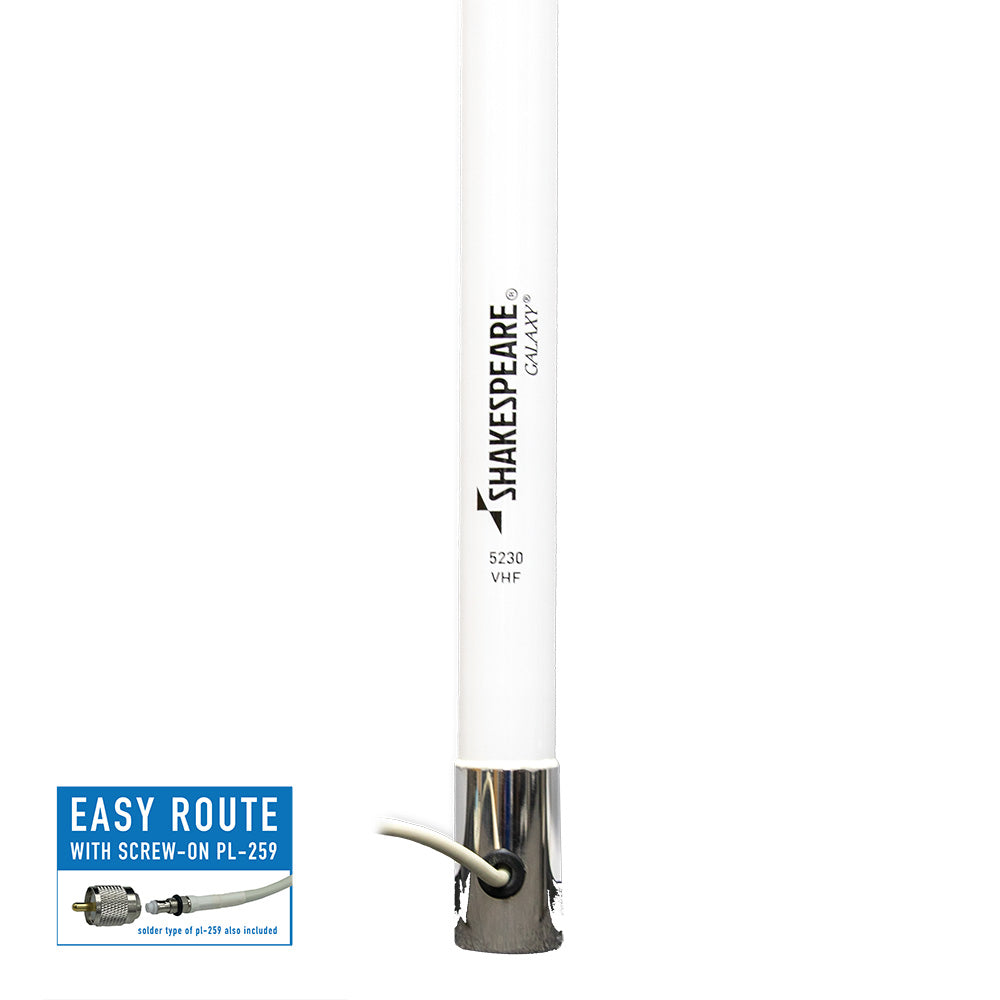

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

  • 5/8 wave over 1/2 wave dipole
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" -
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 8 dB
  • Max Input (Watts): 200 watts
  • DC Ground: YES
  • Height (feet): 14
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 168"
  • Box Dimensions: 3"H x 3"W x 95"L WT: 11 lbs
  • UPC: 719441200084

Quick Guide (pdf)
