Shakespeare 5400-XT Galaxy 4' VHF Antenna - 3dB Gain [5400-XT]

Name: Shakespeare 5400-XT Galaxy 4' VHF Antenna - 3dB Gain [5400-XT]
Brand: Shakespeare
SKU: IM-14037
Price: 203.99 USD
Availability: InStock

$203.99 $239.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

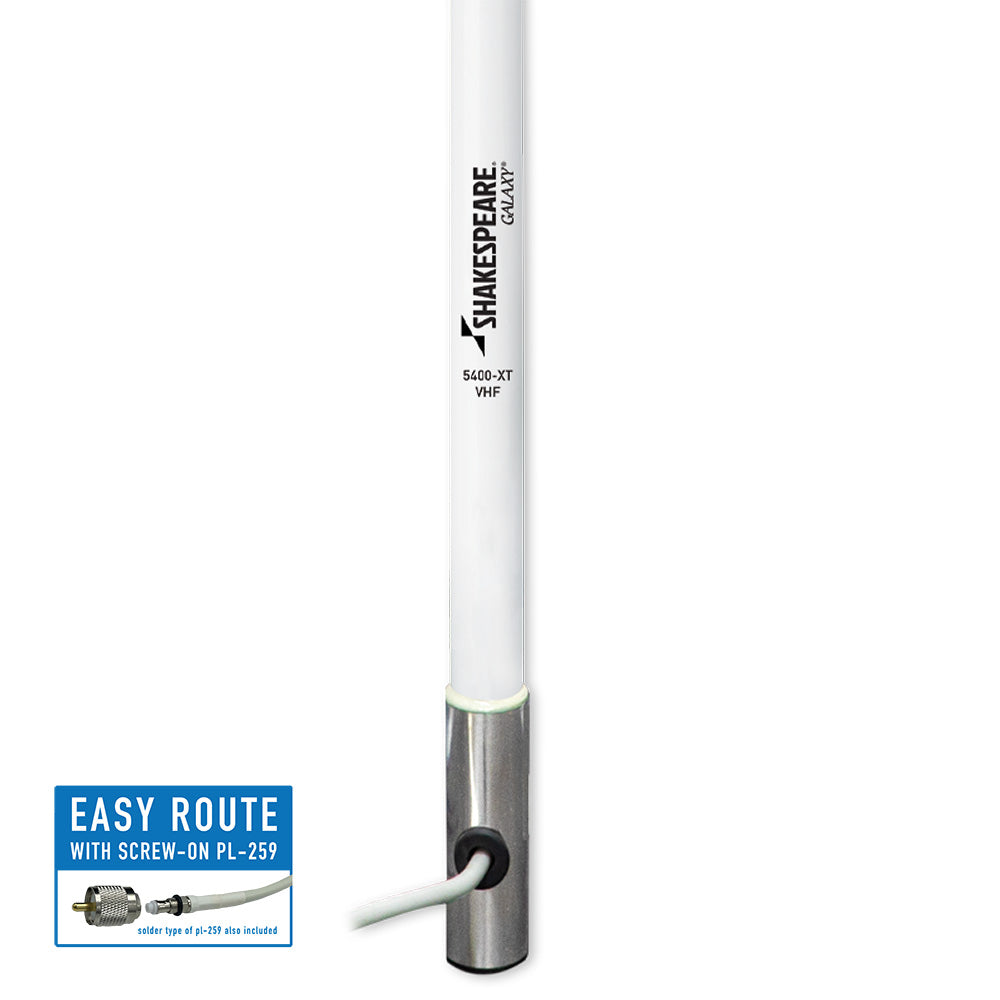

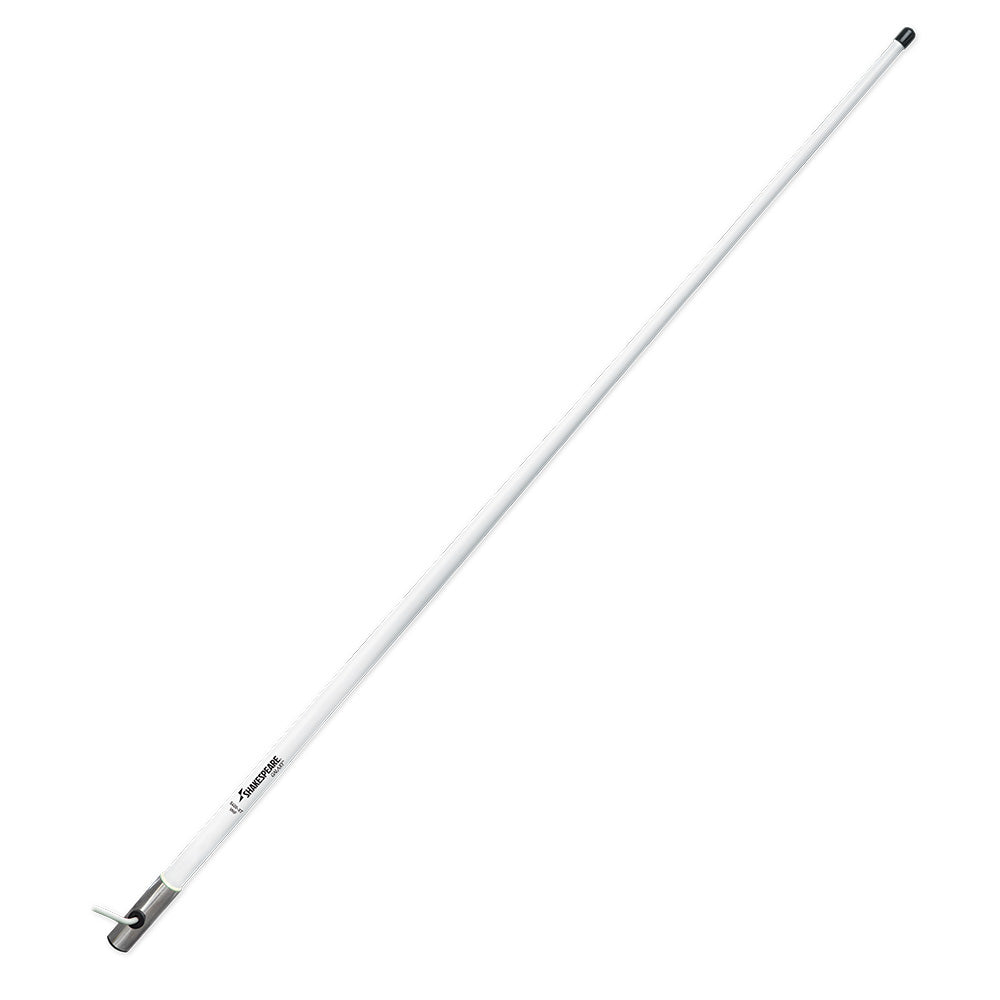

5400-XT Galaxy 4' VHF Antenna - 3dB Gain

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

Center-fed 1/2 wave coaxial sleeve
Brass and copper elements for maximum range
Stainless steel ferrule with standard 1"-14 thread
Includes 20' RG-8/X cable and a PL-259 connector
Suggested mount: Shakespeare Style 4187 Ratchet Mount
One section
Shakespeare Limited Warranty: 5 years
Includes FME Cables

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth: 5 MHz within 2.0:1 VSWR
SWR: Nominally 1.5:1 at 156.8 MHz
Gain: 3 dB
Max Input (Watts): 50 watts
Height (feet): 4

Specifications:

Antenna Band: VHF
Color: White
Construction: Fiberglass
Ferrule Type: Stainless Steel
Length (Inches): 48"
Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs
UPC: 719441100605

Quick Guide (pdf)
