Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]

Name: Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]
Brand: Shakespeare
SKU: IM-10632
Price: 167.99 USD
Availability: InStock

$167.99 $179.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

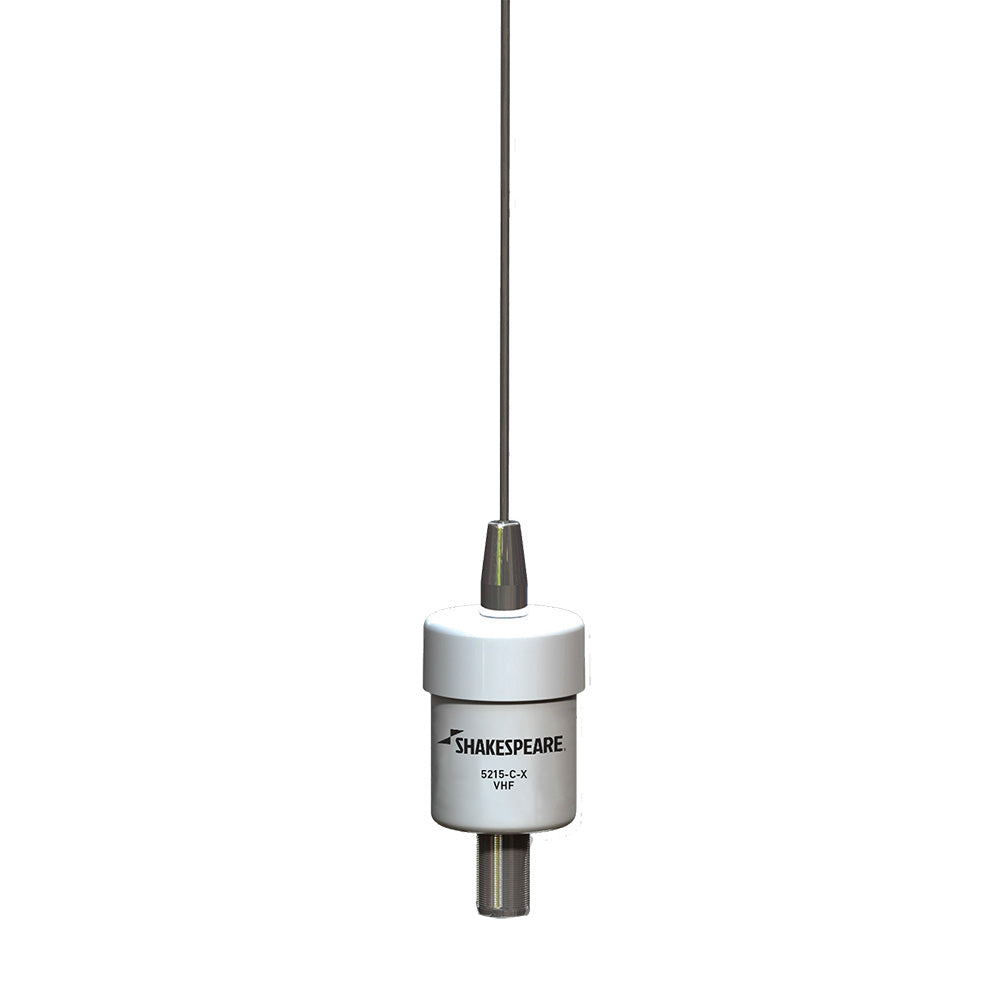

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

Hermetically sealed, tin-plated copper wire coil
Stainless steel body and whip
SO-239 connector
Includes 60' RG-8/X low-loss cable and PL-259 connectors.
Mount: Stainless steel "L" bracket supplied, for mast mounting
One section
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	7 MHz
SWR:	1.5:1 @ 156.8 MHz
Impedance:	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	60' RG-8X cable
Height (feet):	3'
Polarization:	Vertical
Radiation pattern:	Omni-directional

Specifications:

Antenna Band: VHF
Color: Stainless
Construction: Stainless Steel
Length (Inches): 36"
Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs
UPC: 719441100155

Quick Guide (pdf)
