Shakespeare 393 23' Single Side Band Antenna [393]

Name: Shakespeare 393 23' Single Side Band Antenna [393]
Brand: Shakespeare
SKU: IM-10596
Price: 461.99 USD
Availability: InStock

$461.99 $509.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

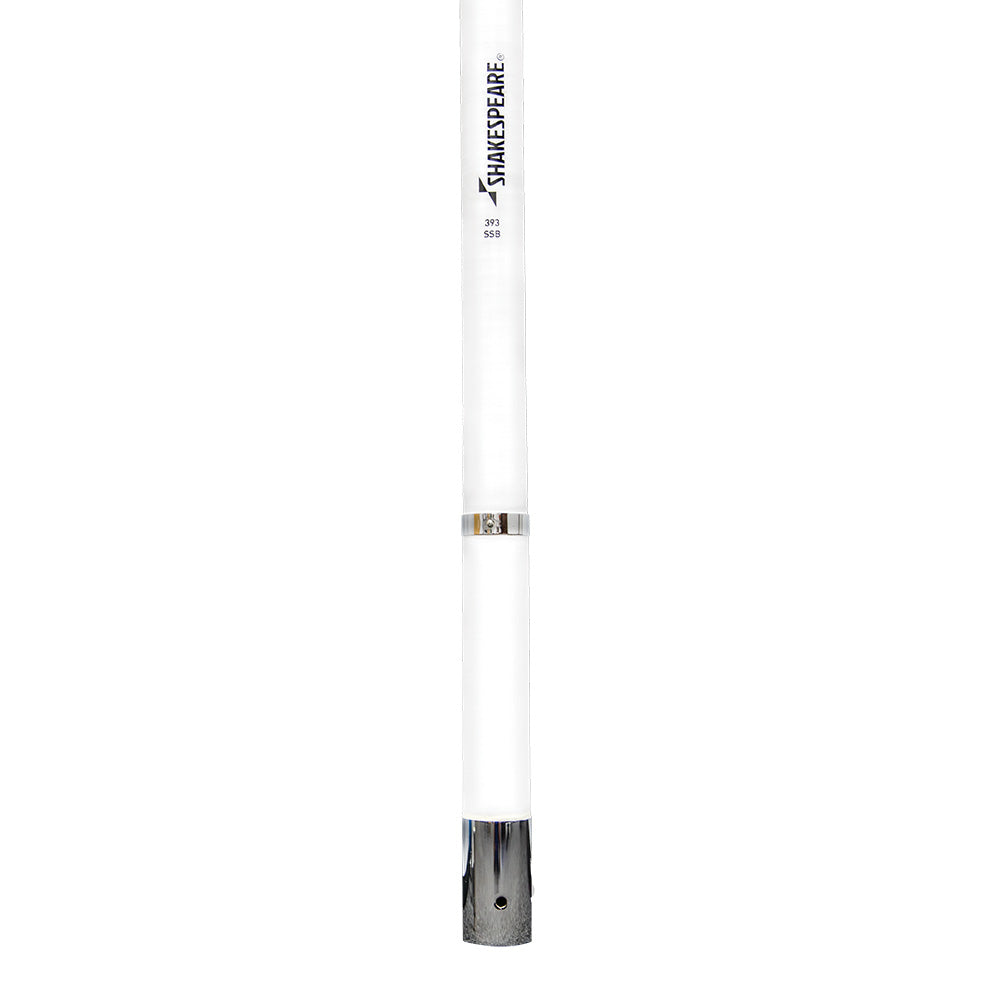

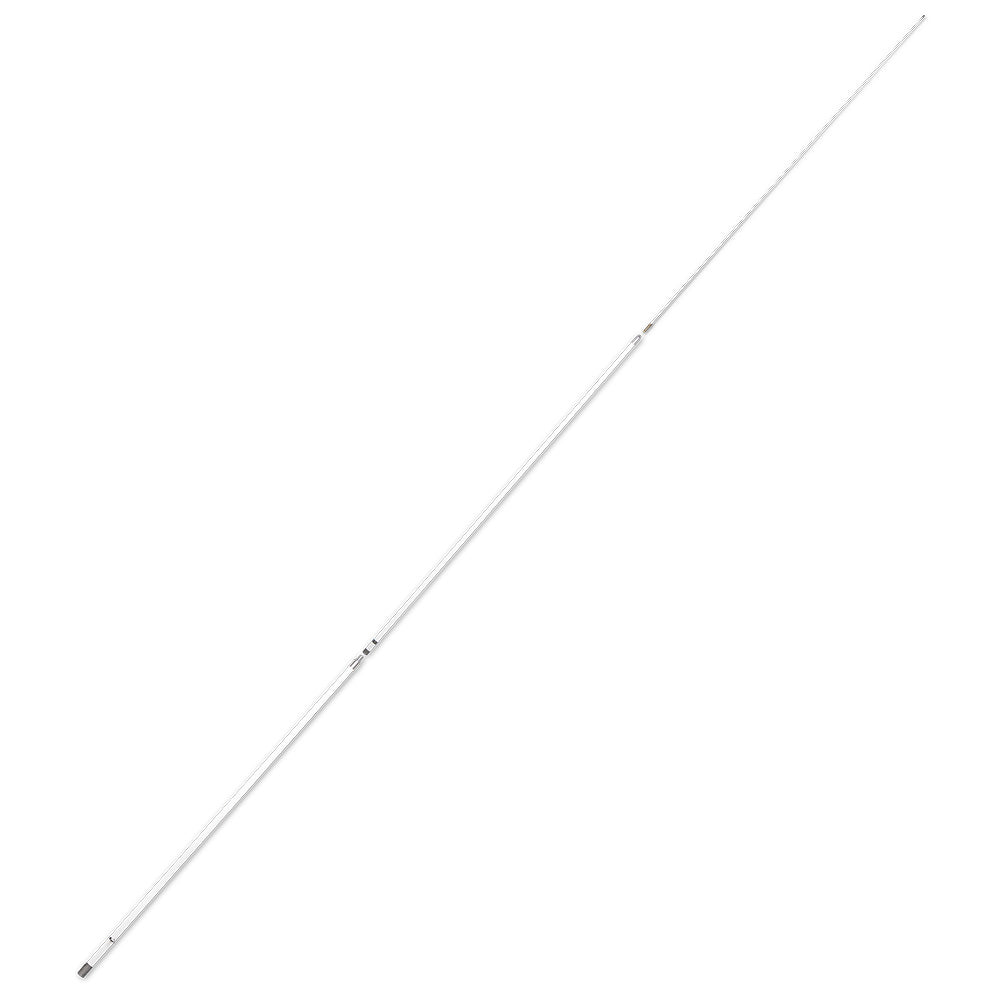

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

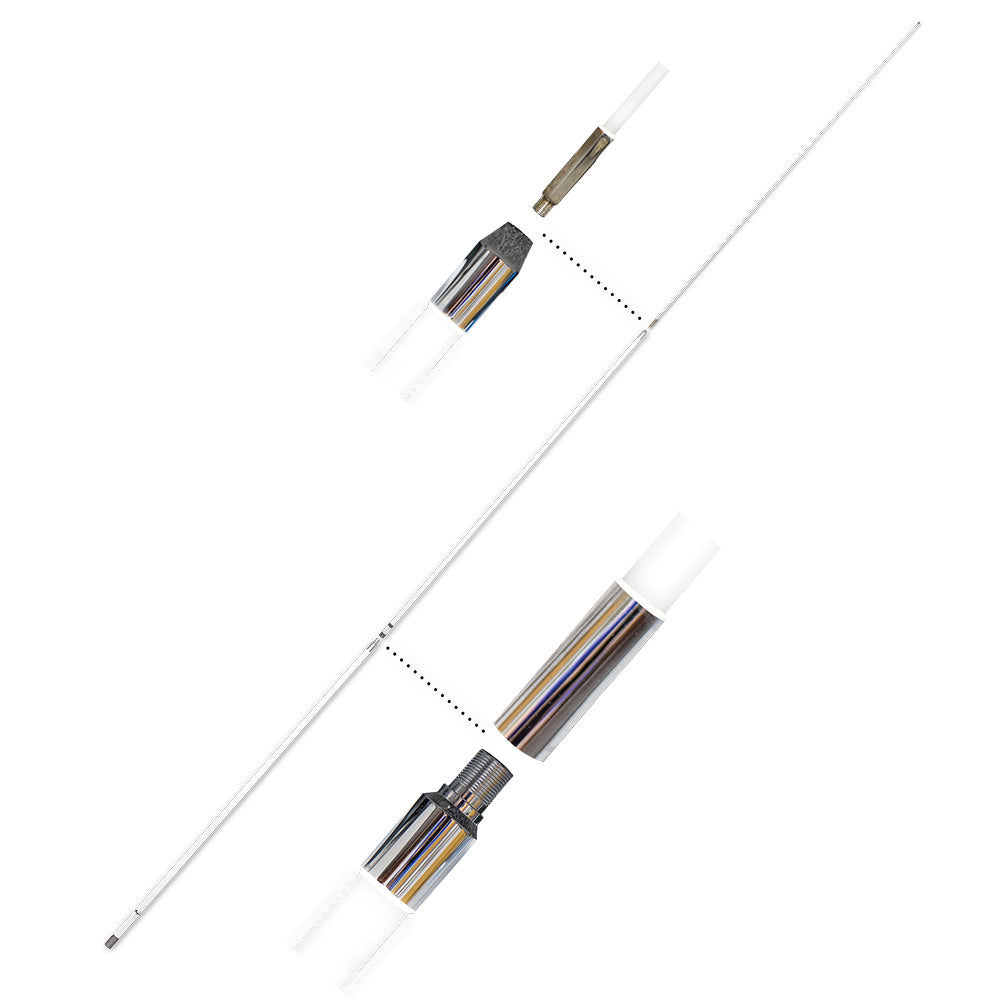

Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
Side feed termination band
Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
Three sections: Base 92"; Center 92"; Tip 92"
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	2-30 MHz HF band with tuner
Bandwidth:	Resonant frequency 10.8 MHz
SWR:	N/A
Impedance:	(Ohms): N/A
Gain:	N/A
Max Input (Watts):	1000
DC Ground:	N/A
Termination:	Side Termination
Height (feet):	23
Polarization:	Vertical
Radiation pattern:	Omni-directional

Specifications:

Antenna Band: SSB
Color: White
Construction: Fiberglass
Ferrule Type: Chrome Plated
Length (Inches): 144"
Box Dimensions: 3"H x 3"W x 96"L WT: 5.2 lbs
UPC: 719441600075

Quick Guide (pdf)
