Description

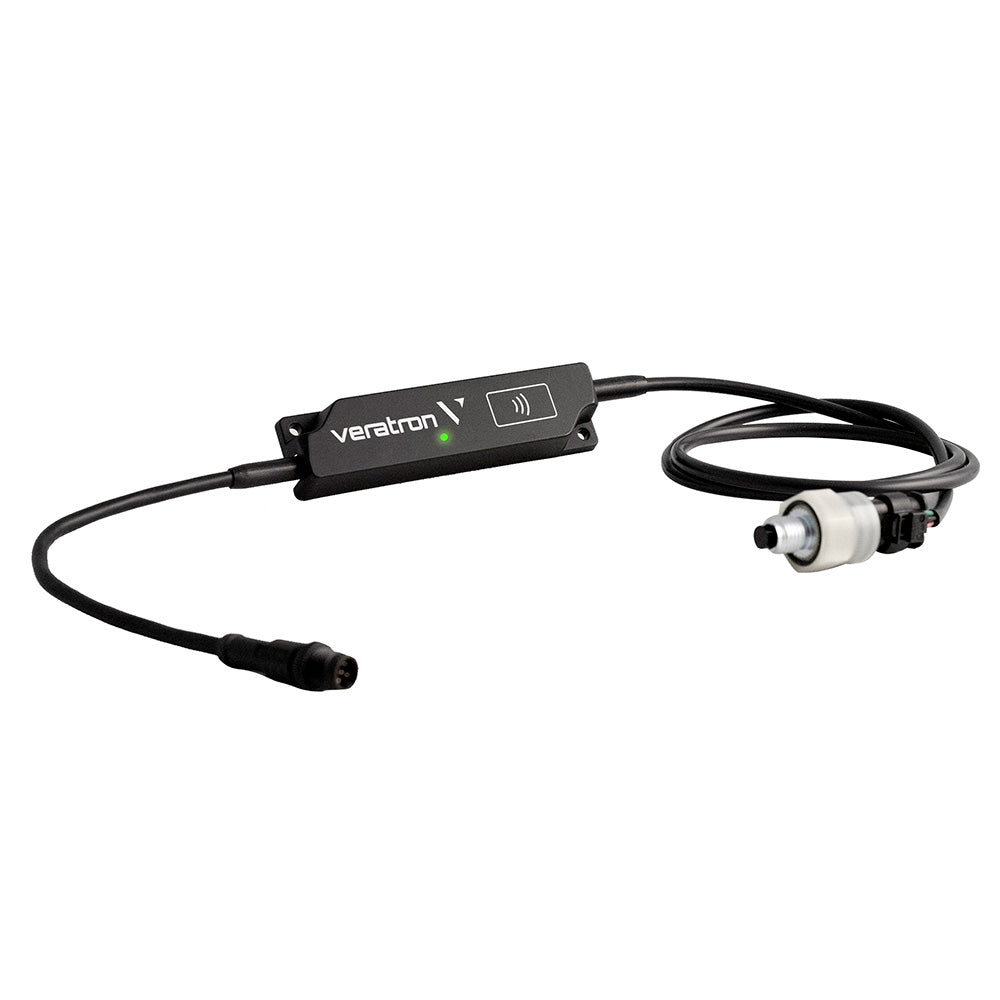

LinkUp Intelligent Temperature & Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.

Features:

Interface to the new electronic 2-in-1 sensor
Oil Temperature and Pressure in a single sensor
Rugged and reliable design derived from the automotive field
ASIC-controlled sensor
PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

M12 mounting thread
IP 69/K protection class
5V power feed provided by the LinkUp
Temperature accuracy ± 1°K in the 135 °C – 160 °C range
Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
Temperature range: -40 °C + 160 °C
Pressure range: 0.5 to 10.5 bar
1M cable length
