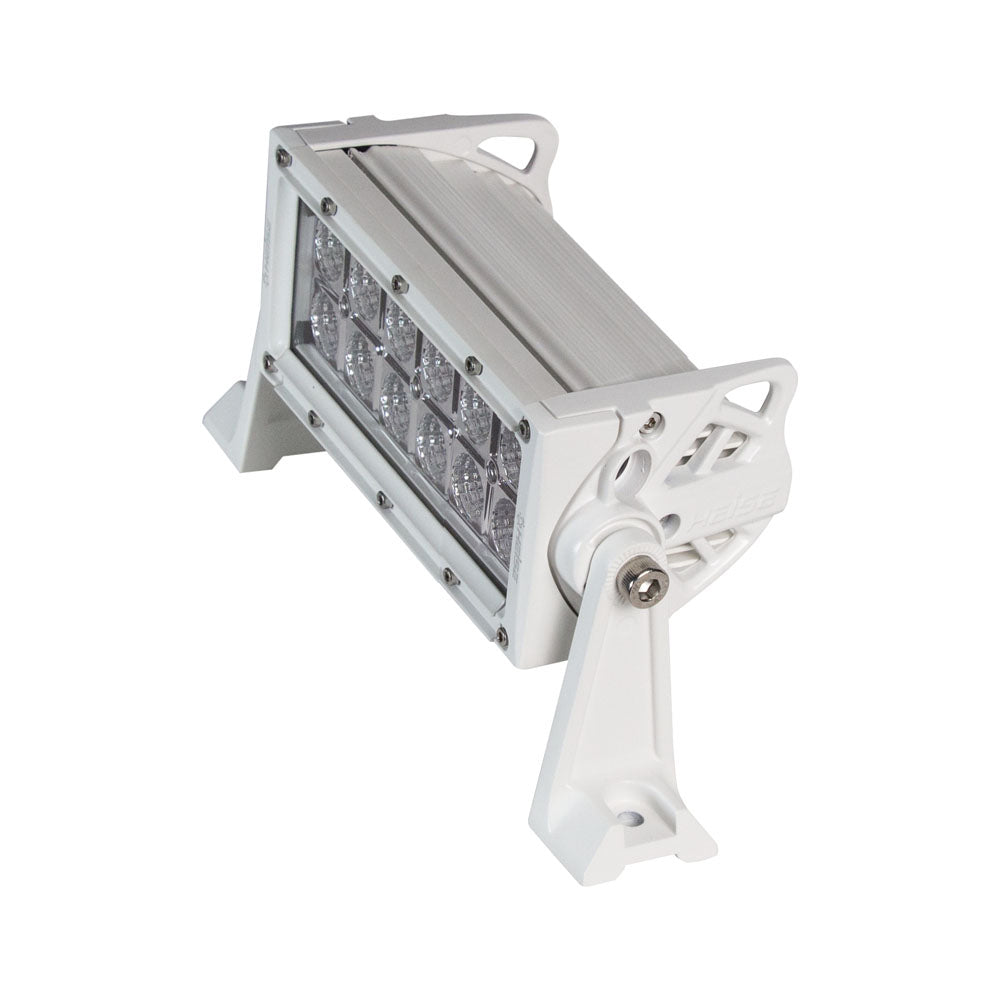

HEISE Dual Row Marine LED Light Bar - 8" [HE-MDR8]
HEISE Dual Row Marine LED Light Bar - 8" [HE-MDR8] is backordered and will ship as soon as it is back in stock.
Professional Insight
This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.
Professional installation is recommended to ensure safety, proper integration, and long-term reliability.
Need help installing this product?
Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.
Schedule Installation
HEISE Dual Row Marine LED Light Bar - 8" [HE-MDR8]
HEISE Dual Row Marine LED Light Bar - 8" [HE-MDR8] is backordered and will ship as soon as it is back in stock.
Description
Description
Dual Row Marine LED Light Bar - 8"
SPECS
- Input Voltage: 10-30V DC
- Wattage: 36W (12-3W CREE LEDs)
- Raw Lumens: 2880
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Hole Dimensions: Brackets turned inward – 7.25in
- Brackets turned outward – 9.5in
- Mounting Bolt Drill – .25in
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40degC to +60degC
- Current Consumption: 1.9 amps at 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 8"
- Housing: White
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 6"H x 6"W x 13"L WT: 3.4 lbs
- UPC: 086429312887
