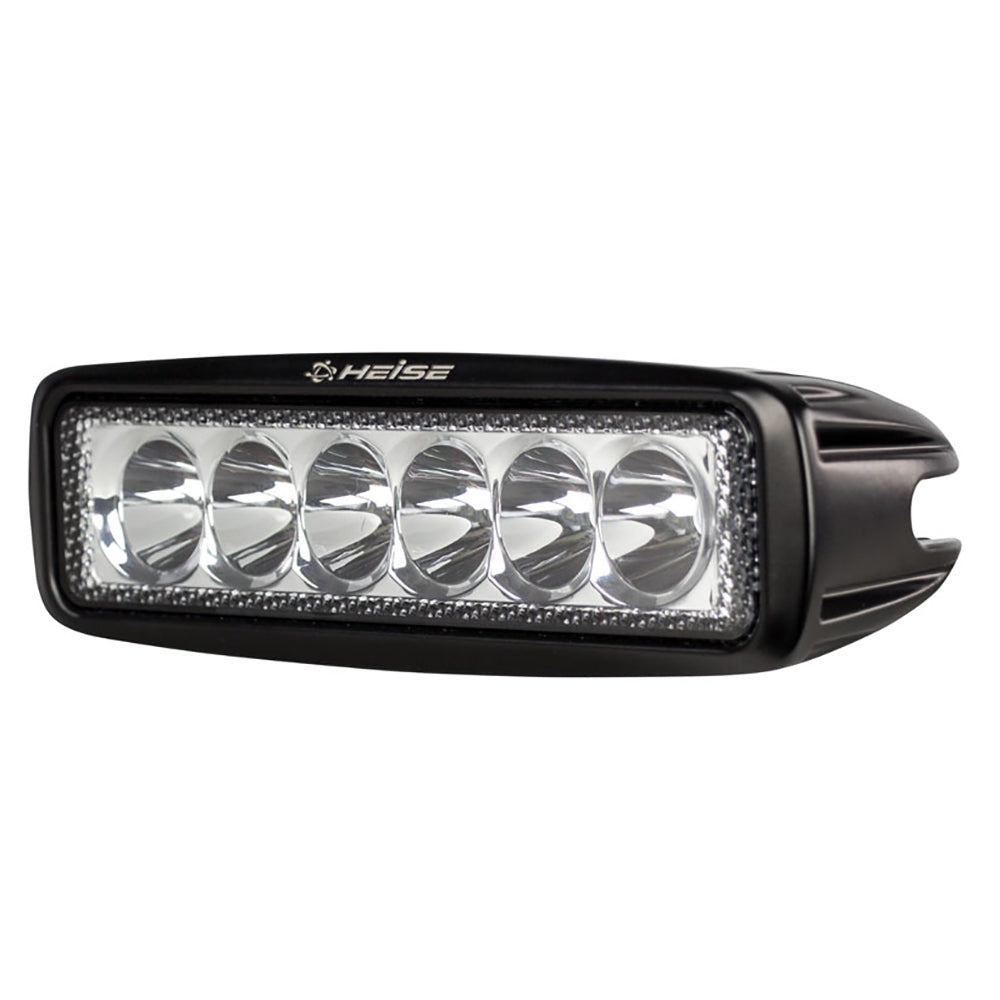

HEISE 6 LED Single Row Driving Light [HE-DL1]

Name: HEISE 6 LED Single Row Driving Light [HE-DL1]
Brand: HEISE LED Lighting Systems
SKU: IM-69765
Price: 121.99 USD
Availability: InStock

$121.99 $135.99

Professional Insight

This product is offered through Inlet Marine Supply as part of our marine electrical catalog. Always verify compatibility with your vessel’s electrical system prior to purchase.

Professional installation is recommended to ensure safety, proper integration, and long-term reliability.

Need help installing this product?

Our service division, Inlet Marine Electric, provides professional marine electrical installation, upgrades, and troubleshooting in South Florida.

Schedule Installation

Description

6 LED Single Row Driving Light

SPECS

Input Voltage: 10-30V DC
Wattage: 18W (6-3W OSRAM LEDs)
Raw Lumens: 1440
Color Temperature: 6000K
Beam Pattern: 25deg Spot

CONSTRUCTION

Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Black Powder Coated Steel
Hole Dimensions: Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

OPERATION

Operating Temperature: -40degC to +60degC
Current Consumption: .9 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Beam Pattern: Driving
Voltage - Input Range (Volts): 10-30v
Length (Inches): 6.25"
Housing: Black
Box Dimensions: 4"H x 4"W x 8"L WT: 1.2 lbs
UPC: 086429312917
